The Chimineas 2 ADU is a 409 SF 1 Bed 1 Bath Accessory Dwelling Unit (ADU) floorplan.



While this layout shares the same entry into an open living room and kitchen space, the hallway office was removed (compared to The Chimineas ADU) to make way for a larger full bathroom and walk-in-closet.

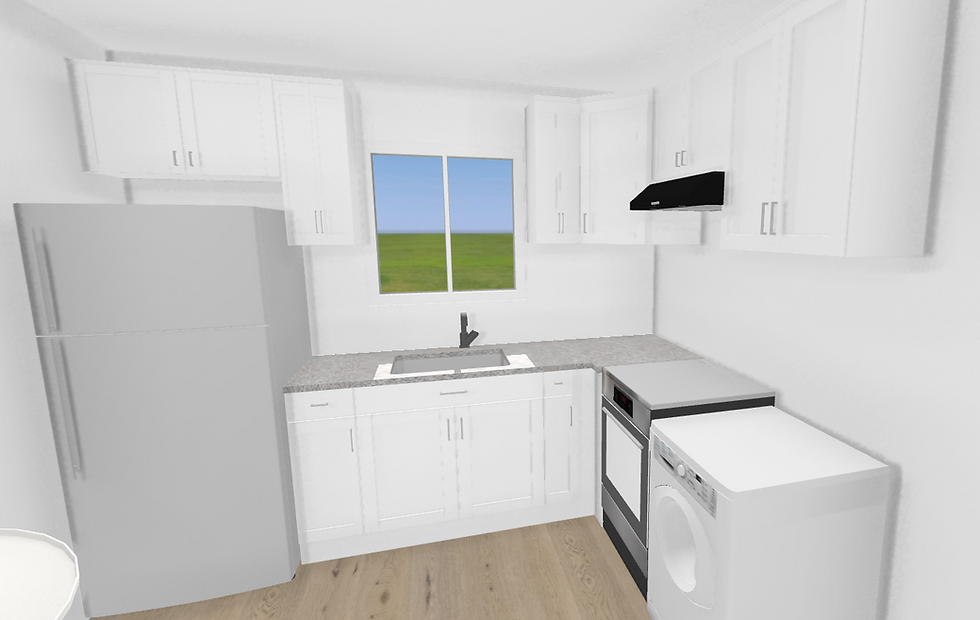

The kitchen in the rendering illustrates space for a 24" x 24" combination washer and dryer, a 24" wide stove, and a 30" wide refrigerator.



Virtual Tour of the ADU



Walk-Through Tour of the ADU



Delivery Options:

There are several options for the delivery of this plan set:



1) Plans Only - Hard Copies & CAD File



We'll print and ship 2 copies of the plans to you along with the CAD file.



Included:

• 2 Physical 24” x 36” Printed Copies of the Full Plan Set

• FREE Shipping with Tracking & Signature Confirmation USPS

• Bonus USB with Guide on How to Get the Plans Ready for City Submittal

• PDF to Customize the Cover Sheet & Modifiable Pages

• CAD File of Floorplan, Elevations, & Cross-Sections to Send to Your Engineer



Sheets Include:

  • Cover sheet, including fill -in-the-blank Project Data
  • Floor Plan
  • Elevations
  • Roof & Solar Plan
  • Cross-Sections
  • CA Green Building Code Forms
  • General MEP Details for Reference Only (including electrical plan)
  • General Notes Required for Plan Submittals in CA
  • Standard Imperial Dimensions



Not Included:

• Submitting the Plans to Your Local City or Jurisdiction

• Structural Engineering, Full MEP Plans

• Processing Your Plan to Planning/Building Department Approval

• Full PDF of the Full Plan Review Set (PDF is just for the modifiable pages)



2) Plans Only - PDF & CAD FILE



We'll provide you a PDF & the CAD files to customize the plans as needed for your submittal.



Included:

• Full PDF of the Full Plan Set

• CAD File of the Floorplan, Elevations, & Cross-Sections to Send to Your Engineer, Designer, or Architect

• PDF Guide on How to Complete the Plans for City Submittal



Not Included:

• Submitting the Plans to Your Local City or Jurisdiction

• Structural Engineering, Full MEP Plans

• Processing Your Plan to Planning/Building Department Approval



3) Plans & Processing to Approval



For clients within 30 miles of DTLA, we'll create the full plan set for this ADU and get it approved in your city or jurisdiction. Once the plans are approved you'll receive 2 copies of the stamped, approved plans.



Included:

• Submitting the Plans to Your Local City or Jurisdiction

• Processing Your Plan to Planning/Building Department Approval

• 2 Printed Copies of the 24” x 36” Plans Stamped by Your Local City or Jurisdiction (provided upon payment of permit fees)

• PDF of the Full Approved Plan to Share with Contractors



Not Included:

• Structural Engineering, Full MEP Plans

• CAD Files



To be eligible for this option the plans must be for a detached structure (ie. a 2-car garage or new construction) and the property must be located within 30 miles of Downtown Los Angeles, California.



If you're still in Southern California, but further than 30 miles from Downtown Los Angeles contact us directly for a quote.

The Chimineas 2 ADU - 409 SF 1 Bed 1 Bath

$850.00Price
  • 409 SF
